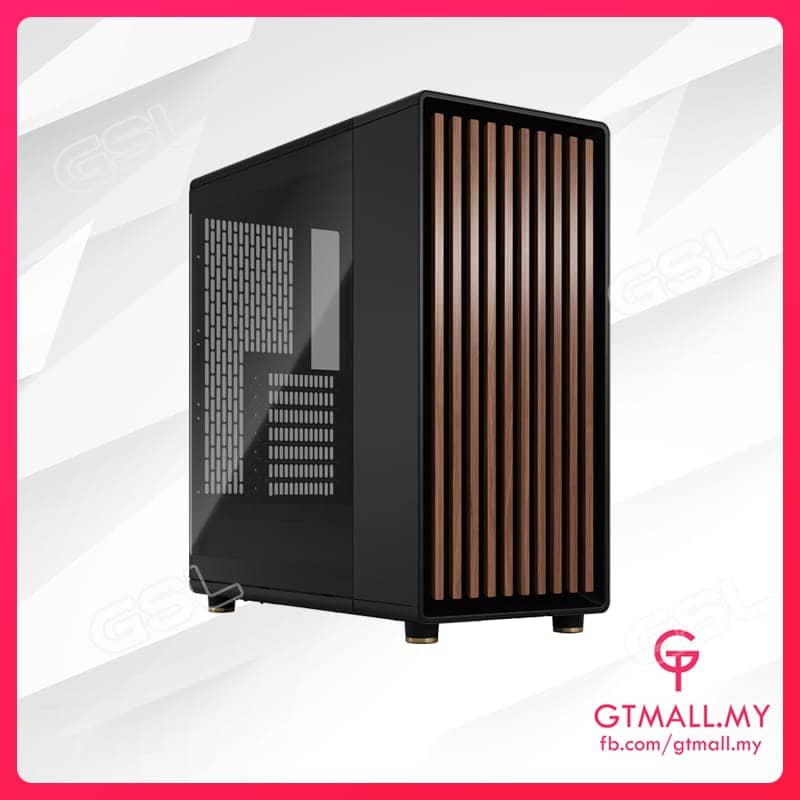

Fractal Design North Charcoal Black TG Dark

Award-winning natural design
Winner of the prestigious Red Dot Design Award 2023
Enjoy a sophisticated looking case which integrates effortlessly into your living space
Enhance your gaming station with a real oak or walnut front, a faux leather tab and sleek steel or brass details

Type-C interface
Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps

Gaming ready
Support radiators up to 240 mm in the top and 360 mm in the front
Room for a GPU up to 355 mm with front fans installed or up to 300 mm with a front radiator
Seven bridgeless expansion slots allow for extensive customization
Designed for ATX / mATX / ITX motherboards

Easy access
Remove the side panels, unclip the front and pop off the top panel using an integrated tab

Ventilated performance
Natural ventilation through an open front and a stylishly integrated mesh top panel
The mesh version of the case features a full mesh side panel in addition to the top

Flexible storage
North features two included combined 3.5″/2.5″ drive mounts and two dedicated 2.5″ drive mounts out of the box
Naturally unique
Enjoy a unique finish, with front panel bars cut from sustainably sourced oak or walnut

Build versatility
Make the most of your building experience with an intuitive interior layout
Two Aspect 14 PWM fans preinstalled with room to expand up to a total of four 140 mm or six 120 mm fans
The mesh version also ships with a fanhub and a fan bracket, providing an additional two fan positions

Specifications
Dedicated 2.5″ drive mounts: 2
Combined 3.5/2.5” drive mounts: 2 (included)
5.25” drive mounts: 0
Expansion slots: 7
Front interface: 1xUSB 3.1 Gen 2 Type-C, 2xUSB 3.0, Audio & Mic
Total fan mounts (TG Version): 6 x 120 mm or 4 x 140 mm
Total fan mounts (Mesh Version): 8 x 120 mm or 6 x 140 mm
Front fan: 3 x 120, 2 x 140 mm (2 x Aspect 140 mm PWM Included)
Top Fan: 2 x 120/140 mm
Rear fan: 1 x 120 mm
Dust filters: Front, PSU
Fixed cable straps: Yes
Cable routing grommets: Yes
Captive thumbscrews: HDD brackets, SSD bracket, Side Panels, Fan Bracket, PSU Bracket
Left side panel: Mesh or tempered glass
Right side panel: Steel

Compatibility
Motherboard compatibility: ATX / mATX / Mini-ITX
Power supply typey: ATX
PSU max lengthy: 1 HDD Tray: 255 mm max, 2 HDD Tray: 155 mm max
GPU max lengthy: 355 mm with and without front fan mounted
CPU cooler max heighty: 145 mm with Fan Bracket (Mesh version only)/ 170 mm w.o
Front radiatory: Up to 360 mm
Top radiatory: Up to 240 mm (See manual for details on ram clearance)
Rear radiatory: 1 x 120 mm (If using a rear radiator the mesh version fan bracket can only be slotted into the bottom position)
Cable routing spacey: 30 mm

Dimensions
Case dimensions (LxWxH): 447 x 215 x 469 mm
Case dimensions w/o feet/protrusions/screws: 433,5 x 215 x 450 mm
Net weight: 7.6 kg (Mesh) / 7.7kg (TG)
Package dimensions (LxWxH): 565 x 326 x 553 mm
Gross weight: 9.55 kg (Mesh) / 9.3kg (TG)
