- Faster AC Wi-Fi—AC1200 dual-band is ideal for 4K video streaming and high-speed downloading.
- Far-Reaching Coverage—4× antennas and Beamforming delivers extensive Wi-Fi coverage and reliable connections.
- Multi-Mode 3-in-1—Supports Router, Access Point, and Range Extender modes for added flexibility.
- Parental Controls—Manages when and how connected devices can access the internet.
- Guest Network—Provides separate access for guests in order to secure the host network.
- Smooth HD Streaming—Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming.
- IPv6 Supported—Compatible with the IPv6 (the latest Internet Protocol version 6).
- Compact and Mountable—Designed to conserve space and complement any décor.
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range | 3 Bedroom Houses 4× Fixed Antennas Beamforming |
| WiFi Capacity | Medium Dual-Band MU-MIMO |
| Working Modes | Router Mode Access Point Mode Range Extender Mode |
| SECURITY | |
|---|---|
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| WiFi Encryption | WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x) |
| HARDWARE | |
|---|---|
| Processor | Single-Core CPU |
| Ethernet Ports | 1× 10/100 Mbps WAN Port 4× 10/100 Mbps LAN Ports |
| Buttons | WPS/Reset Button |
| Power | 9 V ⎓ 0.85 A |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | NO-IP DynDNS |
| Management | Tether App Webpage Check Web Emulator> |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~60℃ (-40℉ ~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE EIRP: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm(2.4GHz & 5GHz) |
| WiFi Reception Sensitivity | 5GHz: 11a 6Mbps:-93dBm； 11a 54Mbps:-78dBm； 11ac HT20 mcs8:69dBm; 11ac HT40 mcs9:-66dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps:-78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbm； |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 4.5 × 4.2 × 1.0 in (115 × 106.7 × 24.3 mm) |

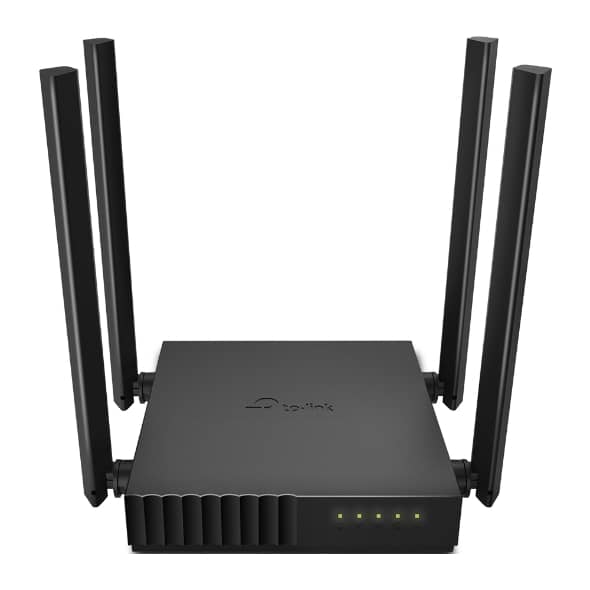

| Package Contents | Wi-Fi Router Archer C54 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
https://www.tp-link.com/my/home-networking/wifi-router/archer-c54/#specifications
| Weight | 1.5 kg |
|---|
Brand
TP-Link
