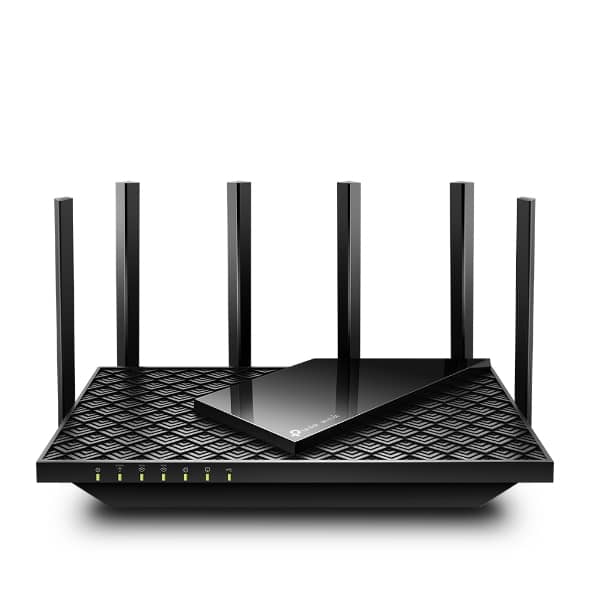

Name: TP-Link Archer AXE75 AXE5400 Tri-Band Gigabit Wi-Fi 6E Router
SKU: 5708
Availability: BackOrder

AXE5400 Tri-Band – AXE5400 Tri-Band Wi-Fi delivers Wi-Fi speeds up to 5400 Mbps.
Cutting-Edge Processing – Armed with a 1.7 GHz Quad-Core CPU.
SuperSpeed USB 3.0 – Up to 10× faster transfer speeds than USB 2.0.
Wi-Fi 6E Unleashed – The brand new 6 GHz band brings more bandwidth, faster speeds, and near-zero latency.
HomeShield – Customize your home network with enhanced security and control.
OneMesh™ – Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage.
Connect More Devices—OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.
Ultra-Low Latency—Enables more responsive gaming and video chatting.
Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.

WIRELESS
Standards	IEEE 802.11ax 6 GHz, IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds	AXE5400 6 GHz: 2402 Mbps (802.11ax) 5 GHz: 2402 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range	2-3 Bedroom Houses 6× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage
WiFi Capacity	Very High Tri-Band Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 6 Streams Connect your devices to more bandwidth
Working Modes	Router Mode Access Point Mode

SECURITY
Network Security	SPI Firewall Access Control IP & MAC Binding Application Layer GatewayHomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner
Guest Network	1× 6 GHz Guest Network, 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network
VPN Server	OpenVPN Server PPTP VPN Server L2TP VPN Server
VPN Client	Open VPN Client PPTP VPN Client L2TP VPN Client
WiFi Encryption	WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)

HARDWARE
Processor	1.7 GHz Quad-Core CPU

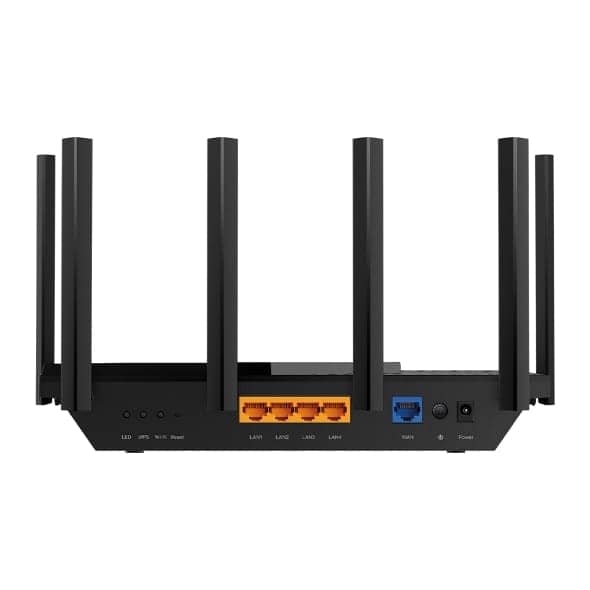

Ethernet Ports	1× Gigabit WAN Port 4× Gigabit LAN Ports
USB Support	1× USB 3.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server
Buttons	Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button
Power	12 V ⎓ 2.5 A

SOFTWARE
Protocols	IPv4 IPv6
Service Kits	HomeShield Learn More>
OneMesh™	OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products>
Parental Controls	HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports
WAN Types	Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service	QoS by Device
Cloud Service	Auto Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Forwarding Port Triggering DMZ UPnP Virtual Server
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link NO-IP DynDNS
Management	Tether App Webpage

OTHER
System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
Certifications	FCC, RoHS
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing

TEST DATA

WiFi Transmission Power

FCC: ≤29dBm (2.4 GHz), ≤28dBm (5 GHz), ≤22dBm (6 GHz)
CE: ≤17dBm (2.4 GHz), ≤27dBm (5 GHz), ≤20dBm (6 GHz)

WiFi Reception Sensitivity

2.4 GHz:
11ax HE20 MCS0:-95dBm, 11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-92dBm, 11ax HE40 MCS11:-62dBm
5 GHz:
11ax HE20 MCS0:-94dBm, 11ax HE20 MCS11:-63dBm
11ax HE40 MCS0:-91dBm, 11ax HE40 MCS11:-60dBm
11ax HE80 MCS0:-88dBm, 11ax HE80 MCS11:-57dBm
11ax HE160 MCS0:-85dBm, 11ax HE160 MCS11:-54dBm
6 GHz:
11ax HE20 MCS0:-93dBm, 11ax HE20 MCS11:-62dBm
11ax HE40 MCS0:-90dBm, 11ax HE40 MCS11:-59dBm
11ax HE80 MCS0:-87dBm, 11ax HE80 MCS11:-56dBm
11ax HE160 MCS0:-84dBm, 11ax HE160 MCS11:-53dBm

PHYSICAL
Dimensions (W×D×H)	10.7 × 5.8 × 1.9 in (272.5 × 147.2 × 49.2 mm)

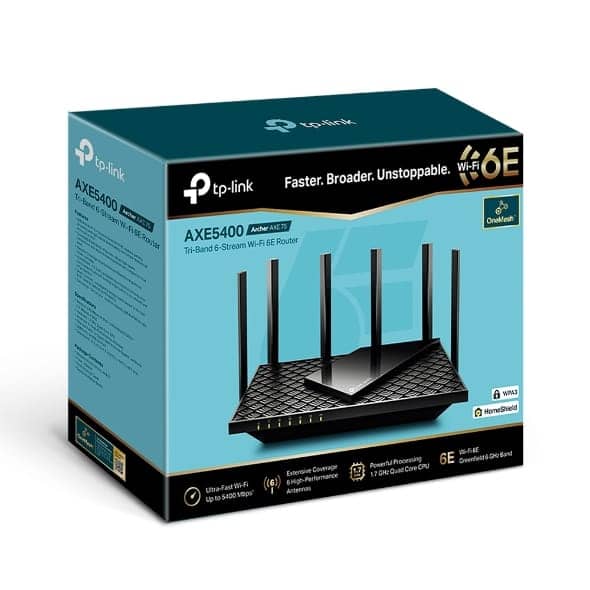

Package Contents	Wi-Fi Router Archer AXE75 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
