Name: TP-Link Archer AX80 AX6000 8-Stream Wi-Fi 6 Router with 2.5G Port
SKU: 5713
Availability: BackOrder

Lightning-Fast AX6000 Wi-Fi: Up to 6.0 Gbps (4804 Mbps + 1148 Mbps) WiFi for faster browsing, streaming, and downloading, all at the same time.¹
2.5G Multi-Gigabit Port: 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports + 1× USB 3.0 port ensure max flexibility and boosted throughput.
Maximized Coverage: Eight high-gain antennas equipped with Beamforming ensure vast coverage.
More Devices with Less Lag: OFDMA and MU-MIMO technology deliver data to multiple devices simultaneously.¹
Powerful CPU: 2.0 GHz quad-core processor ensures fast transmission speeds and smooth operation of numerous devices and applications.

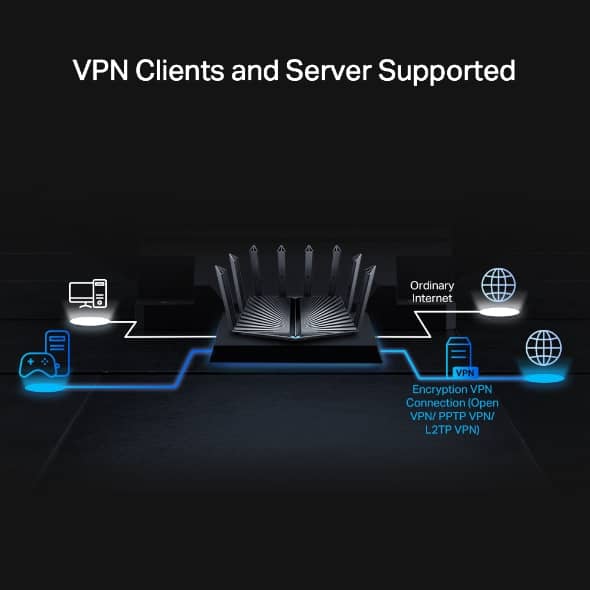

VPN Client Supported: Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device.
TP-Link HomeShield: Enhanced security defends against the latest cyber threats.⁵
TP-Link OneMesh Supported: Flexibly Create Whole Home WiFi with Archer AX80 by adding a OneMesh supported Range Extender.
Compatible with Alexa: Control your router via voice commands and make your life smarter and easier with Amazon Alexa.

WIRELESS
Standards	Wi-Fi 6 • IEEE 802.11ax/ac/n/a 5 GHz • IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds	AX6000 • 5 GHz: 4804Mbps (802.11ax, HE160) • 2.4 GHz: 1148 Mbps (802.11ax)
WiFi Range	3+ Bedroom Houses • 8× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas • Beamforming Concentrates wireless signal strength towards clients to expand WiFi range • High-Power FEM Improves transmission power to strengthen signal coverage
WiFi Capacity	High • Dual-Band Allocate devices to different bands for optimal performance • OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients • Airtime Fairness Improves network efficiency by limiting excessive occupation • DFS Access an extra band to reduce congestion • 8 Streams Connect your devices to more bandwidth
Working Modes	• Router Mode • Access Point Mode

SECURITY
Network Security	SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner
Guest Network	• 1× 5 GHz Guest Network • 1× 2.4 GHz Guest Network
VPN Server	• OpenVPN • PPTP • L2TP
VPN Client	• OpenVPN • PPTP • L2TP
WiFi Encryption	• WPA3*⁶ • WPA2 • WPA • WPA/WPA2-Enterprise (802.1x)

HARDWARE
Ethernet Ports	• 1× 2.5 Gigabit WAN/LAN Port • 1× Gigabit WAN/LAN Port • 3× Gigabit LAN Ports
USB Support	1× USB 3.0 Port USB Sharing: • FTP Server • Media Server • Samba Server
Buttons	• LED On/Off Button • WPS Button • Wi-Fi On/Off Button • Power On/Off Button • Reset Button
Power	• 12 V/3.3 A

SOFTWARE
Protocols	• IPv4 • IPv6
Service Kits	HomeShield Learn More>
OneMesh™	OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products>
Parental Controls	HomeShield Parental Controls • Custom Profiles • Professional Content Filter Library • Family Time • Bedtime • Off Time • Time Rewards • Family Online Time Ranking • Pause the Internet • Weekly and Monthly Reports
WAN Types	• Dynamic IP • Static IP • PPPoE • PPTP • L2TP
Quality of Service	QoS by Device
Cloud Service	• Auto Firmware Upgrade • OTA Firmware Upgrade • TP-Link ID • DDNS
NAT Forwarding	• Port Forwarding • Port Triggering • DMZ • UPnP
IPTV	• IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN
DHCP	• Address Reservation • DHCP Client List • Server
DDNS	• TP-Link • NO-IP • DynDNS
Management	• Tether App • Webpage Check Web Emulator>

OTHER

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications

FCC, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing

TEST DATA

WiFi Transmission Power

FCC:
<24dBm (5.25GHz~5.35GHz&5.47GHz~5.73GHz)
<30dBm (5.15GHz~5.25GHz&5.735GHz~5.835GHz)
<30dBm (2.4GHz)

WiFi Reception Sensitivity

• 2.4 GHz:
11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -67dBm,
11ac VHT40 MCS0: -94dBm, 11ac VHT40 MCS11: -64dBm,
11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -67dBm,
11ax HE40 MCS0: -94dBm, 11ac HE40 MCS11: -64dBm
• 5 GHz:
11ac VHT20 MCS0: -96dBm, 11ac VHT20 MCS11: -66dBm,
11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -63dBm,
11ac VHT80 MCS0: -91dBm, 11ac VHT80 MCS11: -61dBm,
11ac VHT160 MCS0: -86dBm, 11ac VHT160 MCS11: -58dBm,
11ax HE20 MCS0: -96dBm, 11ax HE20 MCS11: -66dBm,
11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -63dBm,
11ax HE80 MCS0: -91dBm, 11ax HE80 MCS11: -61dBm,
11ax HE160 MCS0: -86dBm, 11ax HE160 MCS11: -58dBm

PHYSICAL
Dimensions (W×D×H)	10.9 × 7.2 × 2.3 in (277.3 × 183.9 × 57.3 mm)

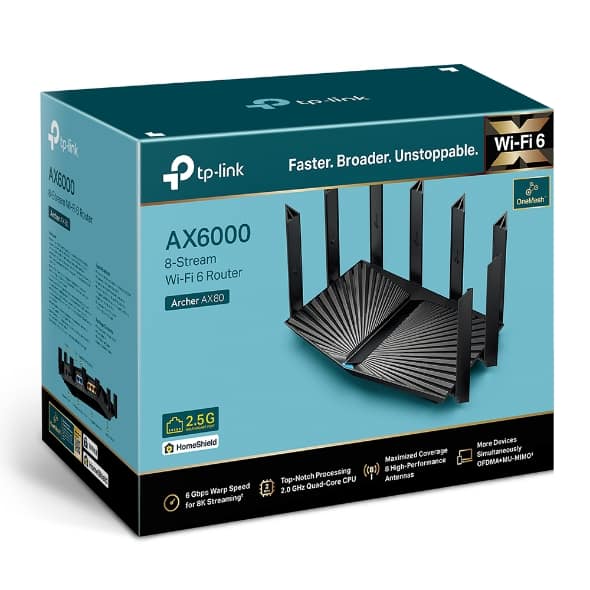

Package Contents	• Wi-Fi Router Archer AX80 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide
