- Gigabit WiFi for 8K Streaming – 5400 Mbps WiFi for faster browsing, streamings, and downloading, all at the same time.†
- Fully Featured Wi-Fi 6 – Equips with the top structure of 4T4R and HE160 on the 5 GHz band to enable a 4.8 Gbps ultra-fast connection.†
- Connect 100+ Devices§ – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.‡**
- Extensive Coverage – 6× antennas and Beamforming ensure broad coverage.
- HomeShield – TP-Link’s premium security services keep your home network safe with cutting-edge features for network and IoT protection.*
- More Vents, Less Heat – Improved vents area unleashes the full power of the whole machine.

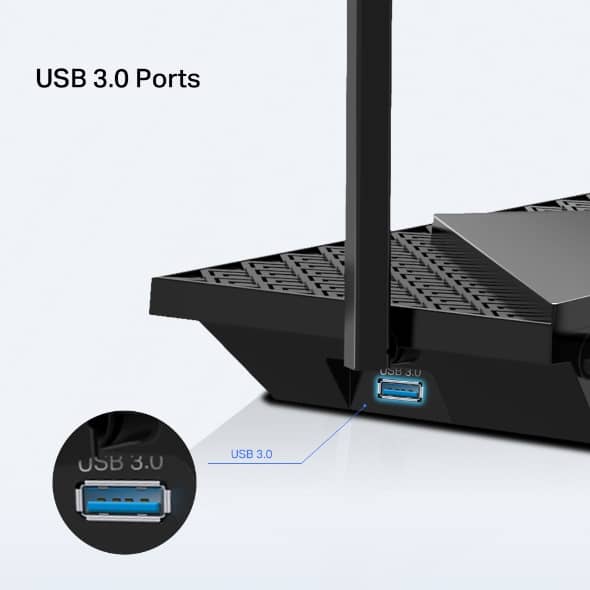

- USB Sharing – 1× USB 3.0 port enables easy media sharing and private cloud building.
- Easy Setup – Set up the router in minutes with the Tether app.
- EasyMesh-Compatible – Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX5400 5 GHz: 4804 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 3 Bedroom Houses 6× Fixed High-Performance Antennas Beamforming High-Power FEM 4T4R |
| WiFi Capacity | High Dual-Band 4×4 MU-MIMO OFDMA Airtime Fairness DFS 6 Streams |
| Working Modes | Router Mode Access Point Mode |
| SECURITY | |
|---|---|
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeShield Security Real-Time IoT Protection |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server | • OpenVPN • PPTP • L2TP |
| VPN Client | • OpenVPN • PPTP • L2TP |
| WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
| HARDWARE | |
|---|---|
| Processor | 1 GHz Dual-Core CPU |

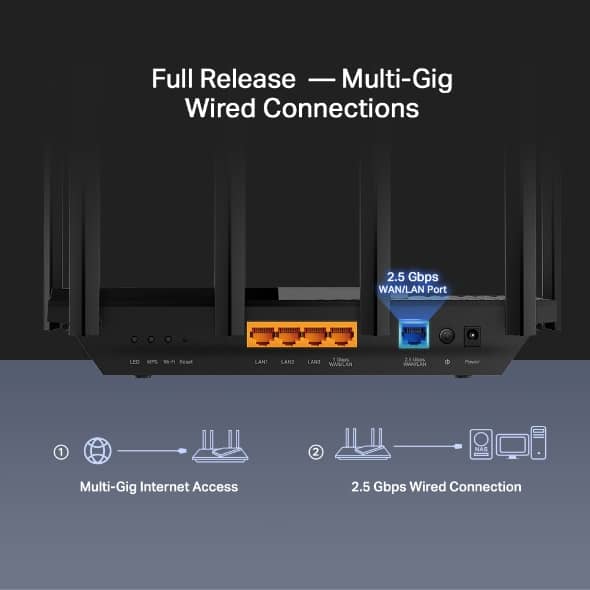

| Ethernet Ports | • 1× 2.5 Gigabit WAN/LAN Port • 1× Gigabit WAN/LAN Port • 3× Gigabit LAN Ports |
| USB Support | 1× USB 3.0 Port Supported Partition Formats: Supported Functions: |
| Buttons | Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button |
| Power | 12 V ⎓ 2.5 A |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Service Kits | HomeShield Learn More> |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
| Parental Controls | HomeShield Parental Controls Custom Profiles |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP Virtual Server |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management | Tether App Webpage |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE: <20dBm{2.4GHz} <23dBm{5.15GHz~5.35GHz} <30dBm{5.47GHz~5.725GHz} FCC: <24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz } <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz } |
| WiFi Reception Sensitivity | 2.4GHz: 11ac VHT20 MCS0:-94.5dBm 11ac VHT20 MCS8:-72.5dBm 11ac VHT40 MCS0:-92.5dBm 11ac VHT40 MCS9:-69.5dBm 11ax HE20 MCS0:-95dBm 11ax HE20 MCS11:-64.5dBm 11ax HE40 MCS0:-92.5dBm 11ax HE40 MCS11:-62dBm 5GHz: 11ac VHT20 MCS0:-97dBm 11ac VHT20 MCS8:-74dBm 11ac VHT40 MCS0:-95dBm 11ac VHT40 MCS9:-70dBm 11ac VHT80 MCS0:-91.5dBm 11ac VHT80 MCS9:-66dBm 11ac VHT160 MCS0:-86dBm 11ac VHT160 MCS9:-61dBm 11ax HE20 MCS0:-95dBm 11ax HE20 MCS11:-64dBm 11ax HE40 MCS0:-91.5dBm 11ax HE40 MCS11:-62dBm 11ax HE80 MCS0:-88dBm 11ax HE80 MCS11:-58dBm 11ax HE160 MCS0:-85.5dBm 11ax HE160 MCS11:-55dBm |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 10.7 × 5.8 × 1.9 in (272.5 × 147.2 × 49.2 mm) |
| Package Contents | Wi-Fi Router Archer AX72 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
https://www.tp-link.com/my/home-networking/wifi-router/archer-ax72-pro/#specifications
Brand
TP-Link
