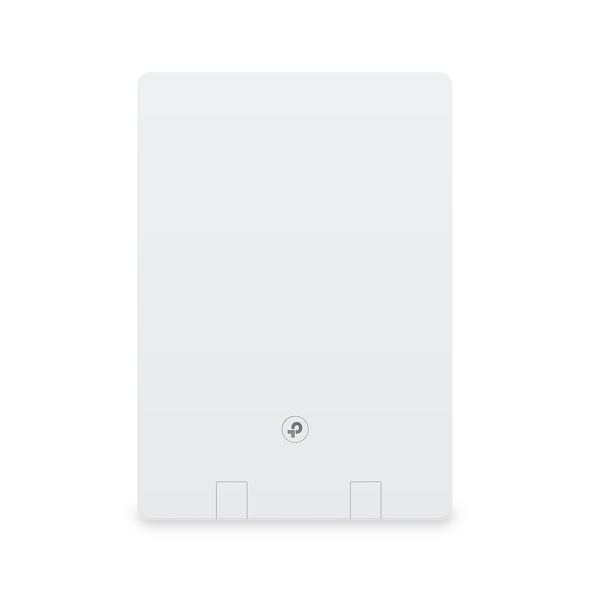

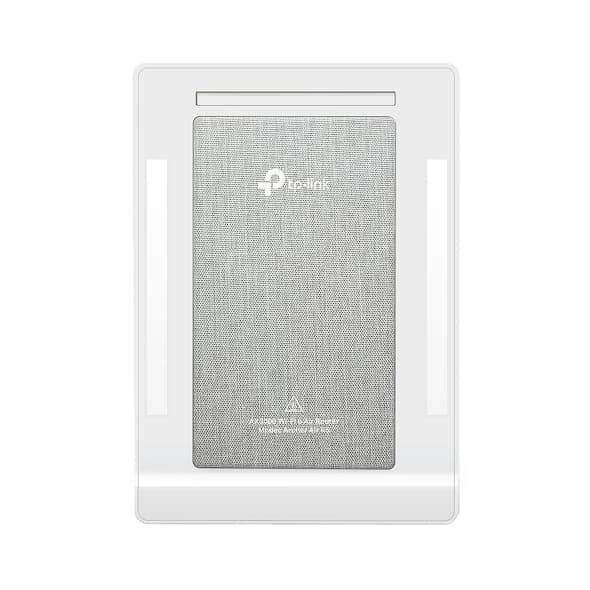

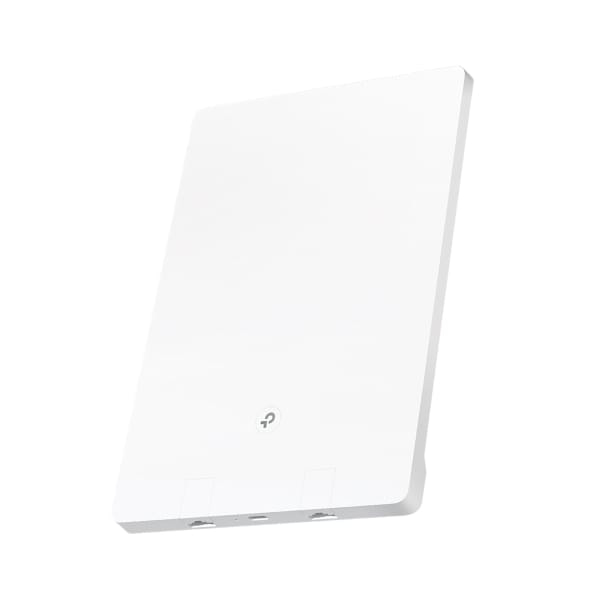

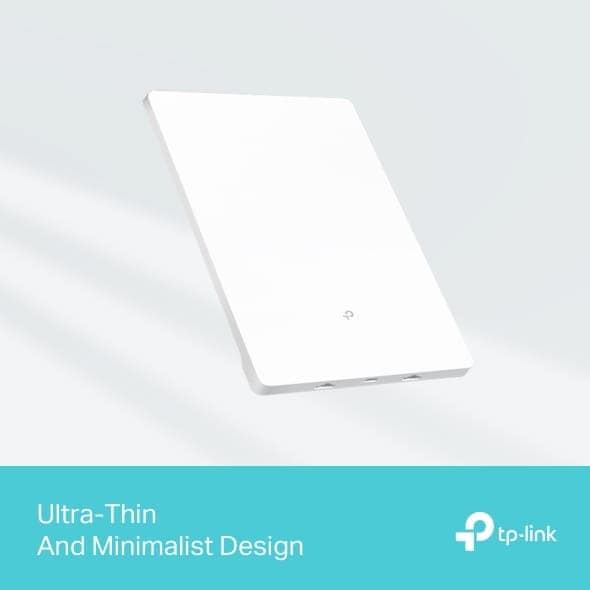

Name: TP-Link Archer Air R5 AX3000 Dual-Band Wi-Fi 6 Air Router
SKU: 5711
Availability: BackOrder

Next-Gen Gigabit Wi-Fi 6 Speed—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.¹

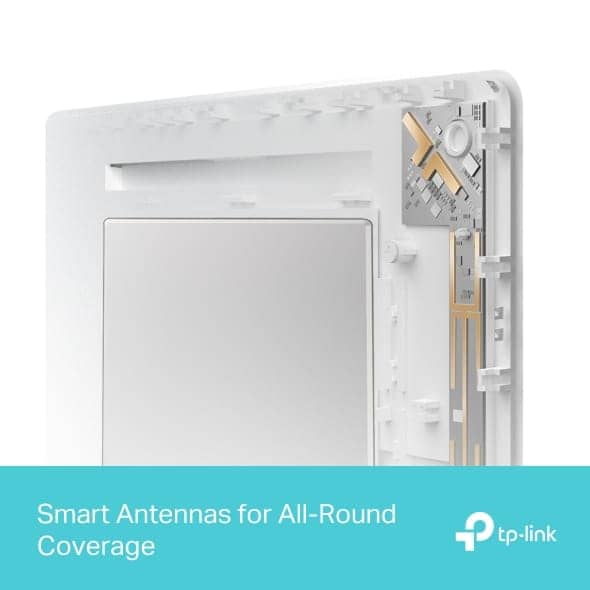

Smart Antennas – Uses intelligent algorithms to auto-detect your devices’ locations and adjust antennas’ direction for all-round stable signals.
Ultra-Low Latency—Enables more responsive gaming and video chatting.
TP-Link HomeShield – Enhanced security defends against the latest cyber threats.
EasyMesh-Compatible – Works with EasyMesh-compatible routers to create a whole home seamless mesh network.³

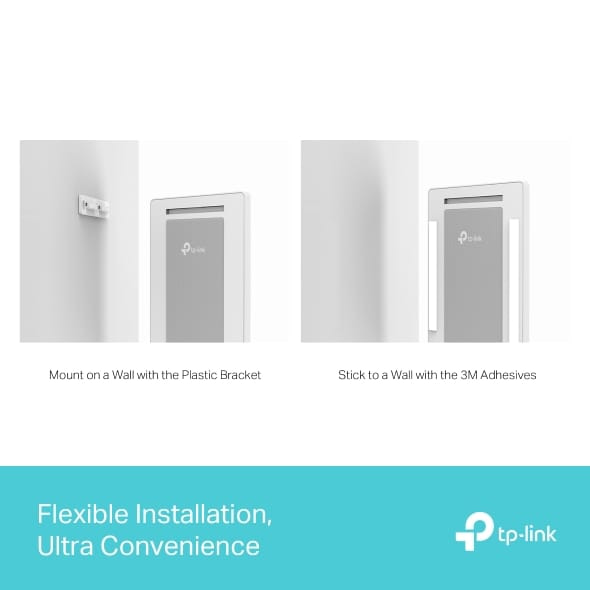

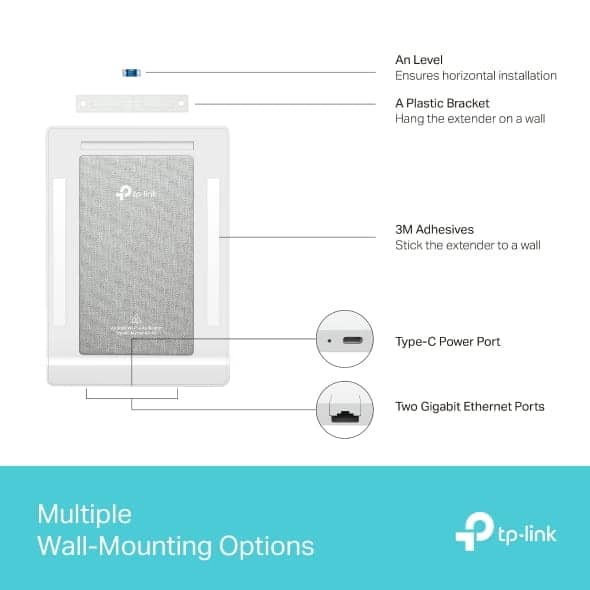

Flexible Installation – Easy to stick or mount on the wall with 3M adhesives and the attached plastic bracket.

WIRELESS
Standards	Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds	AX3000 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range	3 Bedroom Houses Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage
WiFi Capacity	High Dual-Band Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth
Working Modes	Router Mode AP Mode

SECURITY
Network Security	HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner
Guest Network	1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
VPN Server	PPTP ServerN OpenVPN ServerN
WiFi Encryption	WPA/WPA2 WPA3 WPA/WPA2-PSK

HARDWARE
Ethernet Ports	1× Gigabit WAN Port 1× Gigabit LAN Port
Buttons	WPS Button Reset Button

SOFTWARE
Protocols	IPv4 IPv6
Service Kits	HomeShield Learn More>
EasyMesh	Mesh networking creates smooth, fast, stable roaming. Archer Air R5 can build an EasyMesh network with devices that use EasyMesh technology. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Learn More about EasyMesh>
Parental Controls	HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports
WAN Types	Dynamic IP Static IP PPPoE PPPoE + Dynamic IP PPPoE + Static IP L2TP + Dynamic IP L2TP + Static IP PPTP + Dynamic IP PPTP + Static IP
Quality of Service	QoS by Device
Cloud Service	FOTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Fowarding Port Triggering DMZ UPnP
IPTV	Profile Bridge Custom Allowed range of VLAN ID
DHCP	DHCP Server Address Reservation DHCP Client List
DDNS	TP-Link NO-IP DynDNS
Management	Tether App Webpage Check Web Emulator>

OTHER

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications

FCC, CE, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40~60℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90%

TEST DATA

WiFi Transmission Power

CE:
<20dBm(2.4GHz)
<23dBm(5.15GHz~5.35GHz)
<30dBm(5.47GHz~5.725GHz)
FCC:
<30dBm(2.4GHz & 5.15GHz~5.825GHz)

WiFi Reception Sensitivity

5GHz-band1:
11a 6Mbps:-97dBm
11a 54Mbps:-78dBm
11ac HT20 MCS8:-74dBm
11ac HT40 MCS9:-69dBm
11ac HT80 MCS9:-65dBm
11ax HE20 MCS0: -97dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -94dBm
11ax HE40 MCS11: -63dBm
11ax HE80 MCS0: -91dBm
11ax HE80 MCS11: -60dBm
5GHz-band2:
11a 6Mbps:-97dBm
11a 54Mbps:-78dBm
11ac HT20 MCS8:-74dBm
11ac HT40 MCS9:-69dBm
11ac HT80 MCS9:-65dBm
11ax HE20 MCS0: -97dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -94dBm
11ax HE40 MCS11: -63dBm
11ax HE80 MCS0: -91dBm
11ax HE80 MCS11: -60dBm
11ax HE160 MCS0: -88dBm
11ax HE160 MCS11: -58dBm
5GHz-band3:
11a 6Mbps:-97dBm
11a 54Mbps:-78dBm
11ac HT20 MCS8:-74dBm
11ac HT40 MCS9:-69dBm
11ac HT80 MCS9:-65dBm
11ax HE20 MCS0: -97dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -94dBm
11ax HE40 MCS11: -63dBm
11ax HE80 MCS0: -91dBm
11ax HE80 MCS11: -60dBm
11ax HE160 MCS0: -88dBm
11ax HE160 MCS11: -58dBm
2.4GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11n HT20 MCS7:-76dBm
11n HT40 MCS7:-72dBm
11ax HE20 MCS0: -95dBm
11ax HE20 MCS11: -65dBm
11ax HE40 MCS0: -93dBm
11ax HE40 MCS11: -62dBm

PHYSICAL
Dimensions (W×D×H)	8.3 × 5.5 × 0.4 in (210 × 140 × 10.8 mm)
Package Contents	Wireless Router Archer Air R5 Quick Installation Guide Power Adapter Plastic Bracket Gigabit Network Cable Installation Accessories
